Energy Quotient Platform Documentation
The Energy Quotient platform delivers continuous waveform intelligence for mission-critical power systems. This documentation covers the platform architecture, sensor hardware, data access, edge analytics, and deployment options.

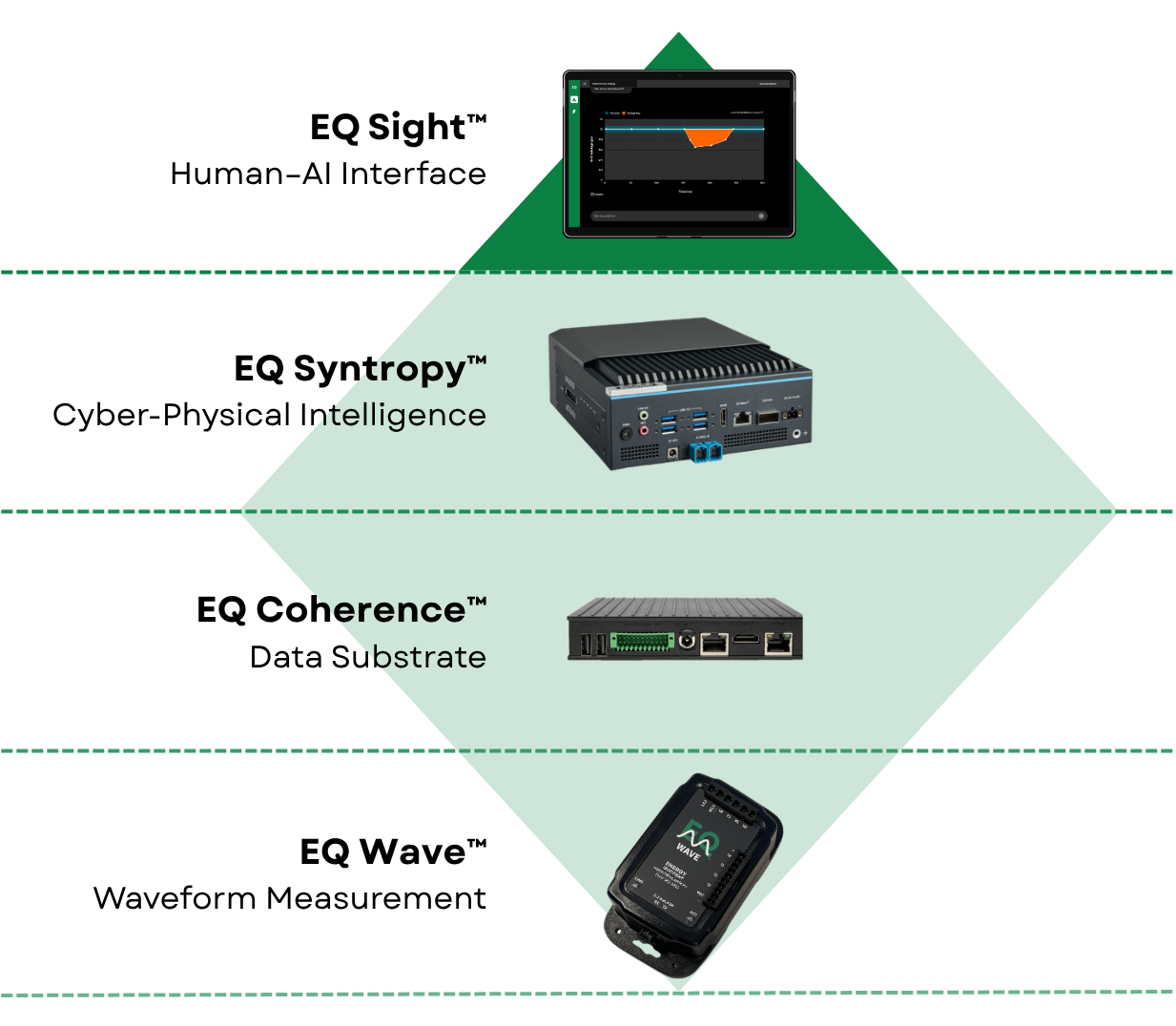

Platform
EQ Wave — High-fidelity continuous waveform capture
- 7-channel Continuous Point-on-Wave (CPOW) measurement (3-phase voltage + 4 current) at 32 ksps, 24-bit resolution
- Dual data streams: raw continuous waveforms and aggregated metrics
- Rugged, fanless design with two-stage measurement isolation and built-in backup power (v1.2 and later)
EQ Coherence — Data substrate
- High-bandwidth, low-latency ingestion pipeline (~6 Mbps per sensor, gap-free)
- Local Parquet storage with automatic rotation and optional data lake sync
- REST API and WebSocket streaming for concurrent consumers
EQ Syntropy — Edge analytics and agentic AI framework
- Physics-grounded analysis with waveform-level evidence
- Statistical detectors, anomaly detection, and pattern interpretation
- API for historical queries and live streaming
EQ Sight — Human–AI interface for exploration and action
- Live dashboard of supply, load and energy status
- Historical analysis from RMS trends down to the raw waveform
- Live oscilloscope, spectrum analyzer and complex-plane instruments
- Conversational analysis with inline plots, with EQ Syntropy enabled
- JupyterLab for advanced analysis (EQ Lab Gateway only)
EQ Wave is the only required component; EQ Coherence and EQ Syntropy are optional.
Getting Started
Release Notes
Release notes for EQ Coherence, EQ Sight, and EQ Syntropy are published at changelog.eq.systems.
Service Status
Monitor EQ service availability at status.eq.systems. The status page covers core infrastructure, EQ Sight deployments, and documentation services, and auto-refreshes every 5 minutes.
